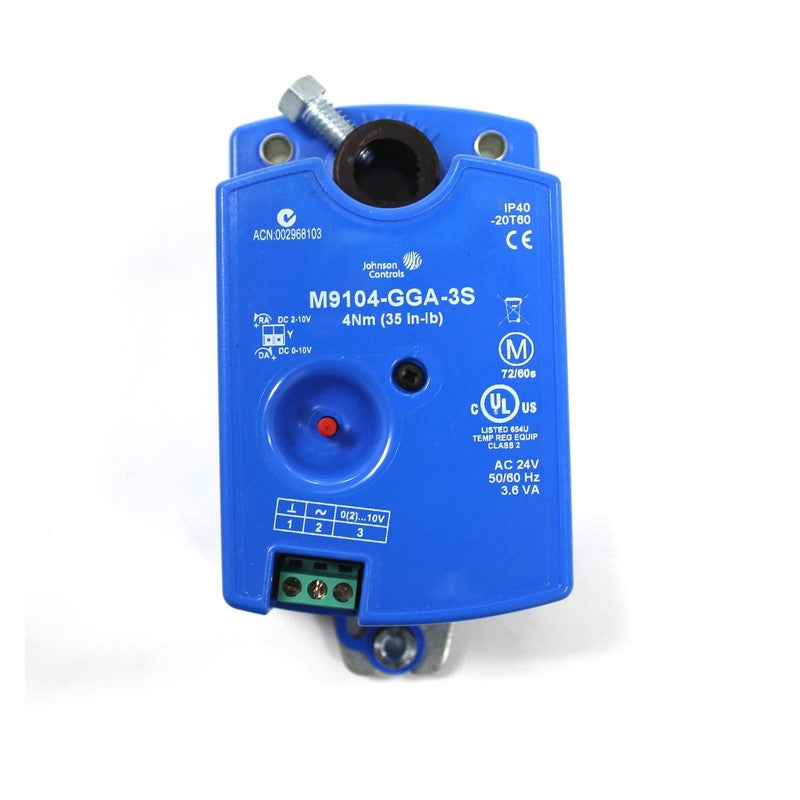

The M9104 Series Actuators are direct-mount, non-spring-return electric actuators that operate on AC 24 V power. The M9104 Series Actuators are direct-mount, non-spring-return electric actuators that operate on AC 24 V power. These synchronous motor-driven actuators provide proportional control with selectable 0-10 or 2-10 VDC(GGA). The M9104 Series Electric Non-Spring-Return Actuators provide a running torque of 35 lb·in (4 N·m), and the nominal travel time is 60 seconds at 60 Hz (72 seconds at 50 Hz) for 90° of rotation.The M9104 Series Electric Non-Spring-Return Actuators provide a running torque of 35 lb·in (4 N·m), and the nominal travel time is 60 seconds at 60 Hz (72 seconds at 50 Hz) for 90° of rotation.
